3.6.2 Translation calculation mode

When the Translation mode is chosen, it is possible to calculate and display a chart of the probability of interference as a function of one of the following input parameters:

  • Output power of Interefering link transmitter;

  • Blocking response level of Victim link receiver;

  • Intermodulation response level of Victim link receiver.

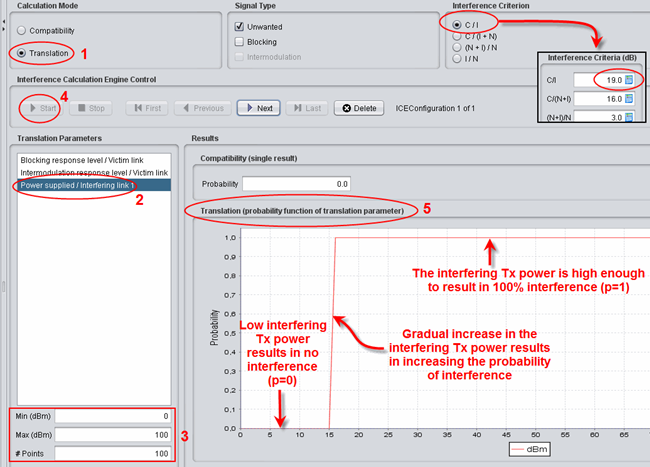

The translation function, as shown as (#1) Figure 98 in, allows investigation of the probability of interference for varying power supplied (#2) to the interefering link transmitter. The power supplied (#3) to the interfering link transmitter should be equal to 15 dBm, which is 18 dB below the value used in the simulation (33 dBm). Effectively the C/I will be increased by 18 dB and reaches the level of 19 dB.




Figure 98: Translation function
