4.1 iRSSunwanted

The following parameters should be changed in the simulation: (i) the interferer operates at 1000.3 MHz and (ii) outside the emission bandwidth, the attenuation is -23 dBc/200 kHz.

The corresponding power may derived using the known equation:

(Eq. 20)



Then, in this example, outside the emission bandwidth (offset between –0.1 MHz and -1 MHz and between 0.1 MHz and 1 MHz), the power is equal to:

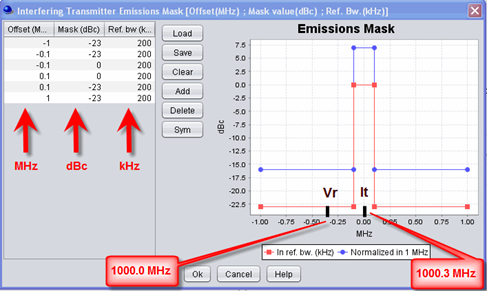

The complete unwanted emission mask is provided in the below figure.

Figure 99: Unwanted emission mask



Using the previous assumptions, it is possible to derive the interfering power received by the Victim link receiver within its bandwidth as described in ANNEX 5: on page 274. This is called the iRSS_unwanted:

                                                         (Eq. 21)





This can be checked by running a simulation and displaying the iRSS_unwanted signal as depicted in Figure 100.

Figure 100: Mean iRSS_unwanted







In this example there is no bandwidth correction factor to be applied to the calculation of the iRSS_unwanted since the VLR bandwidth and the ILT reference bandwidth have the same value (i.e. 200 KHz).

Examples of correction bandwidth can be found in section 3.3.8
