7.5.5 Base station

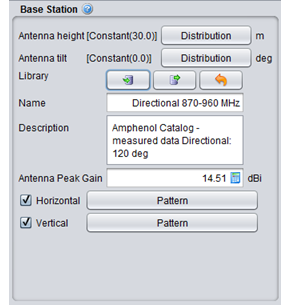

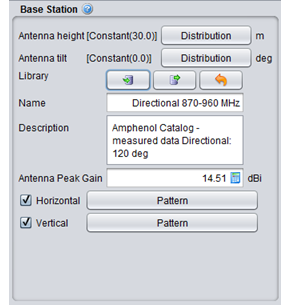

Figure 184: Cellular system – Base station GUI
|
Description |
Symbol |
Type |
Unit |
Comments |
|
Antenna height |
HBS |
Distribution or Scalar |
m |
Distribution used to determine height of BS. Note that the assumed antenna height definition (above ground, above local clutter, effective antenna height) should correspond to the selected propagation model |
|
Antenna tilt |
- |
Distribution or Scalar |
degree |
Equivalent to a physical tilt of an antenna on a mast, (-) sign is a downtilt, (+) sign is an uptilt. See ANNEX 11: for further details and illustration. |
|
Antenna pattern |
- |
Library |
- |
See Section 5.2.3 |
